Mercedes-Benz GLC : Engine compartment / Engine oil
Checking the engine oil level using the oil dipstick
WARNING Risk of burns from hot component
parts in the engine compartment
Certain component parts in the engine compartment
can be very hot, e.g. the engine,
the cooler and parts of the exhaust system.
Allow the engine to cool
down and only
touch component parts described in
the following.
NOTE Plug-in hybrid
Observe the notes in the
Supplement.
You could otherwise fail to recognize
dangers.
Requirements:
- The engine has an oil dipstick. If not, the
engine oil level can be checked only with the
on-board computer.
Depending on the engine, the oil dipstick may be
installed in the engine compartment in different
locations.
The waiting time before checking the oil level
when the engine is at normal operating temperature
is five minutes.

Park the vehicle on a level
surface.

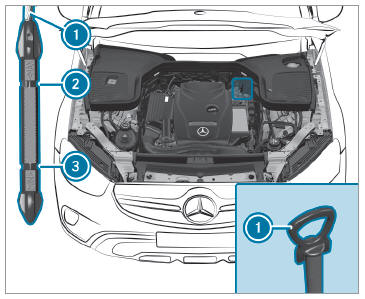

Pull oil dipstick
out and wipe off.
Slowly slide oil dipstick
into the guide
tube to the stop, and pull it out again after
about three seconds.
- Oil level is correct: oil level is between
and
.
- Oil level too low: oil level is at
or
below.
- Oil level too high: oil level is above
.
If the oil level is too low,
add 1.1 US qt
(1 liter) of engine oil.
If the oil level is too high,
drain off excess
engine oil. Consult a qualified specialist
workshop.
WARNING Risk of accident due to driving
with the hood unlocked
The hood may open and block your view.
Never release the hood
when driving.
Before every trip, ensure
that the hood
is locked...
Requirements:
The engine has been warmed up.
The vehicle is parked on a level surface.
The engine is running at idle speed.
The hood is closed.
The engine oil level is determined during driving...
