Programming buttons for the garage door opener
DANGER Risk of death caused by exhaust gases
Combustion engines emit poisonous exhaust gases such as carbon monoxide. Inhaling these exhaust gases is hazardous to health and leads to poisoning.
Never leave the engine
or, if present,
the auxiliary heating running in an
enclosed space without sufficient ventilation.
WARNING Risk of injury when opening or closing a door with the garage door opener
When you operate or program the door with the integrated garage door opener, persons in the range of movement of the door may become trapped or be struck by the door.
Always make sure that
nobody is within
the range of movement of the door.
Only operate the following doors using the garage door opener:
Requirements:
The garage door opener function is always available when the ignition is switched on.
Check if the transmitter
frequency of the
remote control has the frequency range of
280 to 868 MHz.
Radio equipment approval number:
- NZLMUAHL5 (USA)
- 4112A-MUAHL5 (Canada)

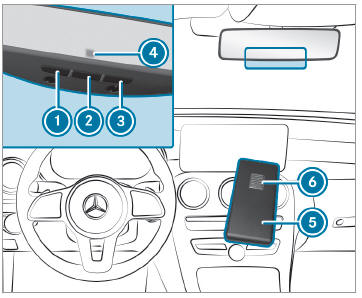

Press and hold button
,
or
that you
wish to program.
Indicator lamp
flashes yellow.
It can take up to 20 seconds before the indicator lamp flashes yellow.
Release the previously pressed
button. Indicator lamp
continues
to flash yellow.
Point remote control
from a distance of 0.4 in (1 cm)
to 3 in (8 cm) towards button
,
or
.
Press and hold button
of remote control
until one of the following signals
appears:
If indicator lamp
does not light up or flash
green: repeat the procedure.
Release all of the buttons.
The remote control for the door drive is not included in the scope of delivery of the garage door opener.
Synchronizing the rolling code
Requirements:
Press the programming button on
the door
drive unit.
Initiate the next step within approximately 30 seconds.
Press
previously programmed button
,
or
repeatedly until the door closes.
When the door closes, programming is completed.
Please also read the operating instructions for the door drive.
Troubleshooting when programming the remote control
Check if the transmitter
frequency of remote
control
is supported.
Replace the batteries in remote
control
.
Hold remote control
at various angles
from a distance of 0.4 in (1 cm) to 3 in
(8 cm) front of the inside rearview mirror.
You should test every position for at least
25 seconds before trying another position.
Hold remote control
at the same angles
at various distances in front of the inside rear
view mirror. You should test every position
for at least 25 seconds before trying another
position.
On remote controls that
transmit only for a
limited period, press button 6 on remote
control 5 again before transmission ends.
Align the antenna line of the
door opener unit
with the remote control.
Support and additional information on programming:
Opening or closing the garage door
Requirements:
Press and hold buttons
,
or
until
the door opens or closes.
If indicator lamp
flashes yellow after
approximately 20 seconds: press and hold
the previously pressed button again until the
door opens or closes.
Clearing the garage door opener memory
Press and hold buttons
and
.
Indicator lamp
lights up yellow.
If indicator lamp
flashes green: release
buttons
and
.
The entire memory has been deleted.
