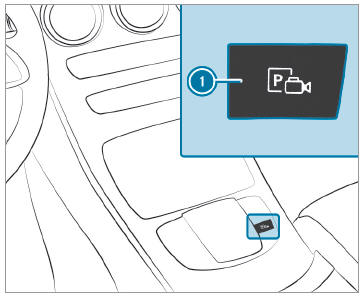

Depending on the vehicle's equipment, the button may also be located at a different position on the center console.
Press button
.

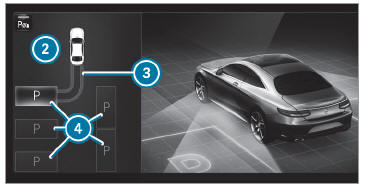

The media display shows the view of Active Parking
Assist. Area displays detected
parking
spaces
and vehicle path
.
Vehicle path shown on the
media display
may differ from the actual vehicle path.
If a parking space is
displayed: stop the vehicle.
Select desired parking space
and confirm.
If necessary, select the
parking direction (forwards
or reverse), and confirm.
Vehicle path
is shown, depending on selected parking space
and the parking direction.
The turn signal indicator is switched on automatically when the parking procedure begins.
You are responsible for selecting the turn signal indicator in accordance with the traffic conditions. If necessary, select the turn signal indicator accordingly.
WARNING Risk of accident due to vehicle swinging out while parking or pulling out of a parking space
While parking or exiting a parking space, the vehicle swings out and can drive onto areas of the oncoming lane.
This could cause you to collide with objects or other road users.
Pay attention to objects
and other road
users.
Where necessary, stop the
vehicle or
cancel the parking procedure with
Active Parking Assist.
If, for example, the Please
Engage Reverse
Gear message appears in the media display: select the corresponding
transmission position.
The vehicle drives into the selected parking space.
During the parking procedure with Active Parking Assist, the lane markings are displayed in green in the camera image.
On completion of the parking procedure, the
Parking Assist Finished,
Take Control of
Vehicle display message appears. Further
maneuvering may still be necessary.
After completion of the parking
procedure,
safeguard the vehicle against rolling away.
When required by legal requirements or local
conditions: turn the wheels towards the curb.
You can stop the vehicle and change the transmission position during the parking procedure. The system then calculates a new vehicle path. If no new vehicle path is available, the system can change the transmission position again or cancel the parking procedure.
