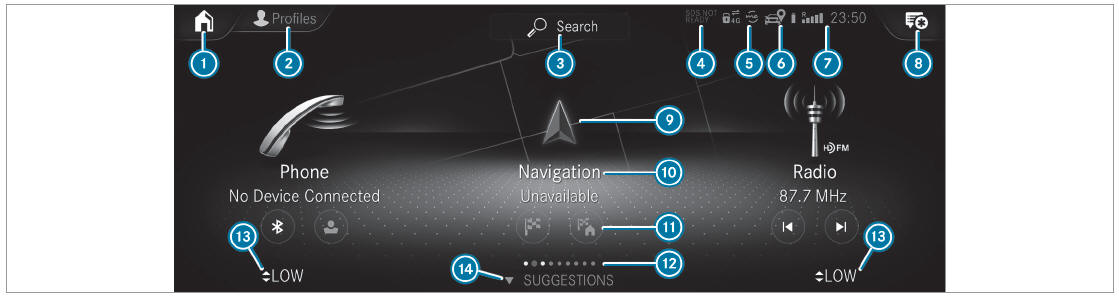

Mercedes-Benz GLC : Overview and operation / Home screen overview
Depending on the display, calls
up the first
three applications or the home screen
Calls up the profile
Calls up the global search
SOS NOT READY (only when the
Mercedes-
Benz emergency call system is not available)
Mercedes me connect active
Transmission of vehicle
position active
Signal strength of the mobile
phone network,
network display, battery status of the mobile
phone connected, time
Calls up the Notifications
Center
Calls up an application using
the symbol
Application and current
information
Quick-access, e.g. enter home
address
Index points and selected
display area
Calls up the air conditioning
menu
Calls up SUGGESTIONS,
THEMES and
FAVORITES
If Mercedes me connect is active
, the
vehicle is linked with Mercedes me connect.
Vehicle data is then transmitted to the backend
system. What data is transmitted
depends on which services are activated.
Further details can be found in the Mercedes
me connect terms and conditions and data
protection information. The function is country-
dependent.
If transmission of vehicle position is active
, Mercedes me connect services have
been activated for this vehicle which access
the vehicle's geoposition. In which instances
the geoposition is transmitted depends on
the particular services. Further details can
be found in the Mercedes me connect terms
and conditions and data protection information.
The function is country-dependent.
Touch Control and control panel
for the
MBUX multimedia system
Media display with touch
functionality
Control panel for telephone,
navigation,
radio/media, vehicle functions/system settings
and favorites/themes
Touchpad
Controller
Turn: adjusts the volume
Press: switches sound on or off
Switches the multimedia system or
media display on or off
Further operating options:
Conducting a voice dialog with the Voice
Control System...
Other information:
WARNING Risk of accident due to insufficient
or excessive tire pressure
Tires with either too low or too high a pressure
present the following hazards:
the tires could burst
the tires could wear excessively and/or unevenly
the driving characteristics as well as steering and braking
characteristics may be severely impaired
Observe the recommended
tire pressures
and check the tire pressure of all
tires including the spare wheel:
monthly
if altering the load on the vehicle
prior to long journeys
if the operating conditions change, for
example when driving off-road
Adjust the tire pressure
where necessary...
WARNING Risk of entrapment when
opening a side window
When opening a side window, parts of the
body could be drawn in or become trapped
between the side window and window frame.
When opening, make sure
that nobody
is touching the side window.
Release the button
immediately if
somebody becomes trapped...
