Mercedes-Benz GLC : Emergency / Warning triangle
Removing the warning triangle
The warning triangle is located
in the stowage
well under the cargo compartment floor.

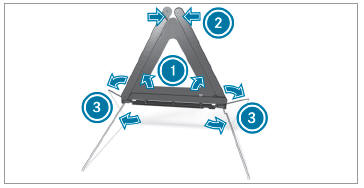

Setting up the warning triangle

Fold side reflectors
upwards to form a triangle
and attach at the top using upper
press-stud
.
Fold legs
down and out to the side.
The safety vests are located in the storage compartments
in the driver's and front passenger
door.
To remove: pull out the
safety vest bag by
the loop...
